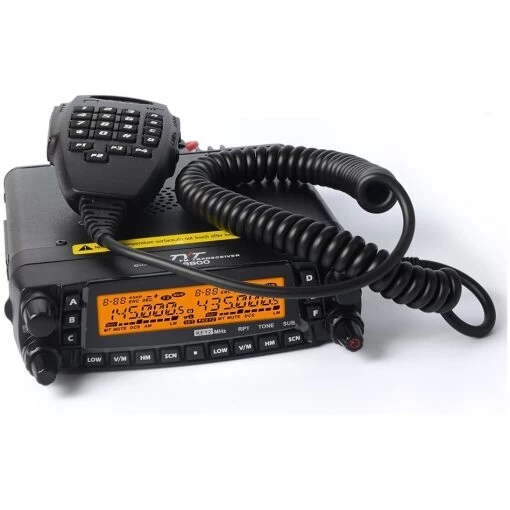

TYT TH-9800 (Plus version) Quad Band 50W Cross-Band Transceiver

Category:

$ 350.00

Amateur Radio Operator’s Certificate is required in order to possess, install, or operate

The TYT TH9800 Quad Band amateur / HAM radio transceiver can transmit with power up to 50w. It has dual receive capability that allows you to monitor two frequencies at once. The Tyt TH-9800 is a quad band radio that covers the 10 Meter, 6 Meter, 2 meter & 70cm Bands.

– Loaded with features, Over 800 AlphaNumeric Memory channels!
– True automatic cross band repeater mode, Twin simultaneous Receive, w/seperate Vol &
Squelch controls!
– Multiple Tuning Steps,. Includes full keypad microphone!
– Remote mountable Faceplate!
– Receive Range: 26-33Mhz, 47-54 MHz, 110-180Mhz ( with AM Air band), 350-399Mhz, 430–
512Mhz, 750-947Mhz.
– 50W 2M & VHF / 40W 10M & UHF, with Multiple lower power settings available too.
– ctcss, dcs (PL & DPL), DTMF, 2 tone/5tone signaling, ANI, Display Brightness setting &
more!
– Includes 12Vdc Power Cable & Mounting Bracket, SO-239 Antenna connector on radio.
Built In Cooling Fan.

Functions:

– Outstanding 0.2uV sensitivity across 10m/6m/2m/70cm bands
– Brilliant crossmodulation, intermodulation rejection and strong signal performance-
similar to commercial radios.
– Commercial quality and commercial performance, too!
– 809 memory channels
– DTMF mic included!
– Digital FM broadcast band radio
– High/low output power levels
– Reverse frequency selection
– Dual (V/U) squelch set levels
– Dual repeater offsets selectable
– Multi-function scanning
– Repeater offset selectable
– Keypad lock function
– Channel name editing
– CTCSS/DCS encode/decode
– Dual Band/Dual Receive: (Full Duplex)
– Cross Band Repeat
– TX Power: 5-50 Watts
– Memories: 256
– Antenna Connection: Single SO 259s

Specification:

General
Frequency Range:
– 26-33MHz (RX/TX) (AM band RX)
– 47-54MHz (RX/TX) (AM band RX)
– 136-174MHz (RX/TX)
– 400-480MHz (RX/TX)
– 108-136 (AM band RX only)
– 320-399.000 (RX only)
– 750-950 (RX only)

– Channel Capacity: 809 channels
– Channel Spacing: 5/10/12.5/15/20/25/50KHz
– Modes of Emission: F3, F2, F1
– Antenna Impendence: 50 Ohms, unbalanced(Antenna Duplexer bulit-in)
– Frequency Stability: ±5 PPM@-140°F~+140°F(-10-+60)
– Operating Voltage: -4°F~+A140°F(-10-+60)
– Operating Temperature Range: 13.8VDC (±15%). Negative ground
– Current Cunsumption(Approx): RX: 0.5A (Squelched);TX:8.0A (50/430MHz), 8.5A(29/144MHz)
– Case Size(WXHXD): 140×41.5x168mm (w/0 knobs & connectors)
– Weight(Approx): 2.2lb(1Kg)

Transmitter:

– Output Power: 50/20/10/5W(29/50/144MHz)
– Modulation Type: Variable Reactance
– Maximum Deviation: Better than -60dB(29MHz:Better than -50dB)
– Modulation Distortion: Less than 3%
– Microphone Impedance: 2kΩ
– DATA jack Impedance: 10KΩ
Receiver:
– Circuit Type: Double-conversion super-heterodyne
– Intermediate Frequency:
45.05MHz/450KHz(left band)
47.25MHz/450KHz(right band)
– Sensitivity(for 12dB SINAD): Better than 0.2μV
– Squelch Sensitivity: Better than 0.16μV
– Selectivity(-6dB/-60dB): 12KHz/30KHz
– Maximum AF Output: 2W@8Ω for 5% THD
– AF Output Impedance: 4-16Ω

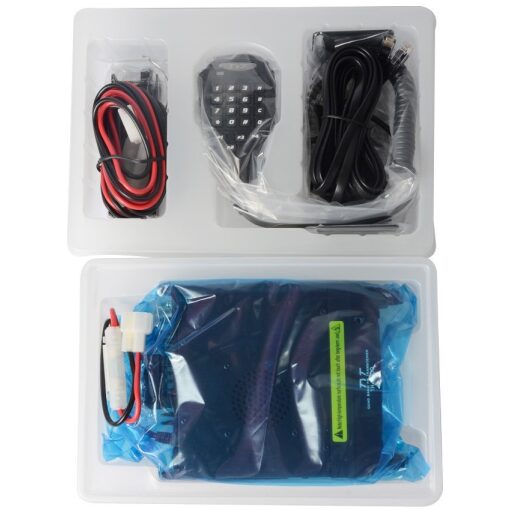

Package Content:

1x TYT TH-9800 Mobile Transceiver
1x Handheld Microphone
1x Power Cable
1x Screws and Accessories
1x User’s Manual
1x Fixed Bracket
1x Microphone Hanger

Weight 2 kg
Dimensions 25 x 18 x 6 cm
